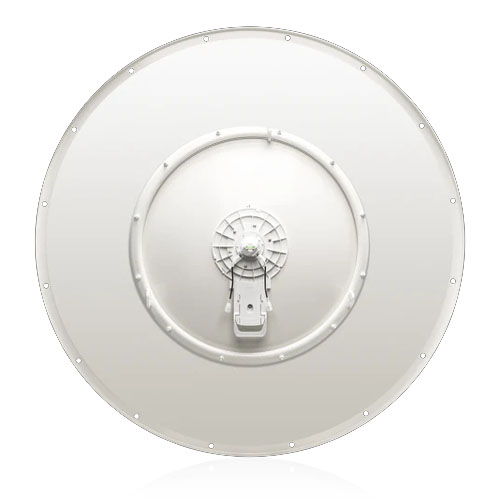

Air Fiber X Antenna AF-5G30-S45 (30dBi ) | AF-5G34-S45(34dBi)

Description

The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and point to point (PtP) bridging (aireFiber X radio sold separately).

Powerful Performance

The airFiber X antenna delivers 2×2, dual-polarity performance. On the right is one example of how the airFiber X antenna with an airFiber X radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX Sector antenna with a Rocket radio delivers bandwidth to the WISP’s customers.

Carrier Class Construction

Incorporation a dish reflector design for excellent beam directivity, the airFiber X antennas feature robust mechanical design using industrial strength hardware for outdoor application use

Plug and Play Integration

airFiber X antennas and airFiber X radios have been designed to seamlessly work together. Every airFiber X antenna has a built-in airFiber X radio mount, so installation requires no special tools. Snap the airFiber X radio securely into place and mount the antenna; you then have the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Innovative Mechanical Design

• Secure Pole-Mounting
  Maintains the position of the dish during harsh outdoor conditions.
• Low-Profile Form Factor of the AF-5G23-S45
  Reduces wind-loading.

Weatherproof Design

• Protective Shroud
  Protects the cables and connectors from the elements.
• Integrated Radome of the AF-5G23-S45
  Shields the radio from the environment.

Compact Footprint for Deployment Flexibility

The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.

The airFiber X supports ± 45° slant polarization for improved noise immunity and Signal-to-Noise Ratio (SNR). The compact form factor of the airFiber X allows it to fit into the radio mount of Ubiquiti antennas, so installation requires no special tools.

The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the airFiber X.

Advanced RF Isolation Design

The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high-capacity, multipoint networks. The near-field plot of the AF-5G23-S45 is displayed in watts and uses a linear scale. The strength of the electromagnetic field is color-coded:

• Red: Highest strength
• Green: Medium strength
• Indigo: Lowest strength
