Gatexpert SW400DC Swing Gate Automation System

 95,000

Model = SW400DC (Electronic Limit Switch)
Power supply = 110V/60Hz
Motor power = 62W
Gate moving speed = 22-26s / 90°
Max.single-leaf weight = 400kg (882lbs)
Max.single-leaf length = 4m (13ft)
Max.force = 3800N
Remote control distance = ≥30m
Storage battery (optional) = DC24V (4.5Ah or 9Ah)
Remote frequency = 433.92 MHz
Working temperature = -20°C ~ +70°C

SKU: ANS-5381

Description

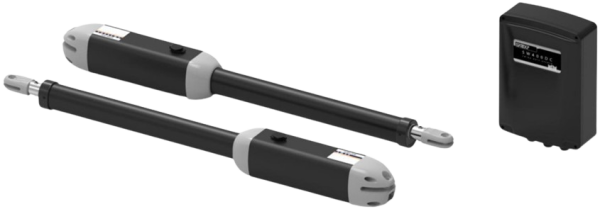

  • SW400DC-S swing gate operator is applicable to single leaf gate weight less than 400kg (882lbs), and the length shorter than 4m(13ft.) .
  • Can be installed on doors that open inwards or outwards.
  • External security device and access control system can be connected, such as infrared photocell, wireless keypad, electric lock, storage battery, alarm lamp, etc.
  • Obstacle sensibility, slow speed distance and gate moving speed can be adjusted.
  • Automatic closing time can be set.
  • Can be opened by manual release bar when the power is off

Packing listing:

  • 2 motors
  • 1 control box
  • 1 accessories box
  • 2 remote controls
  • 1 manual release bar
  • 1 user manual
